Telescopic table with telescopic fork reinforced
type VTZ up to 1.500 kg

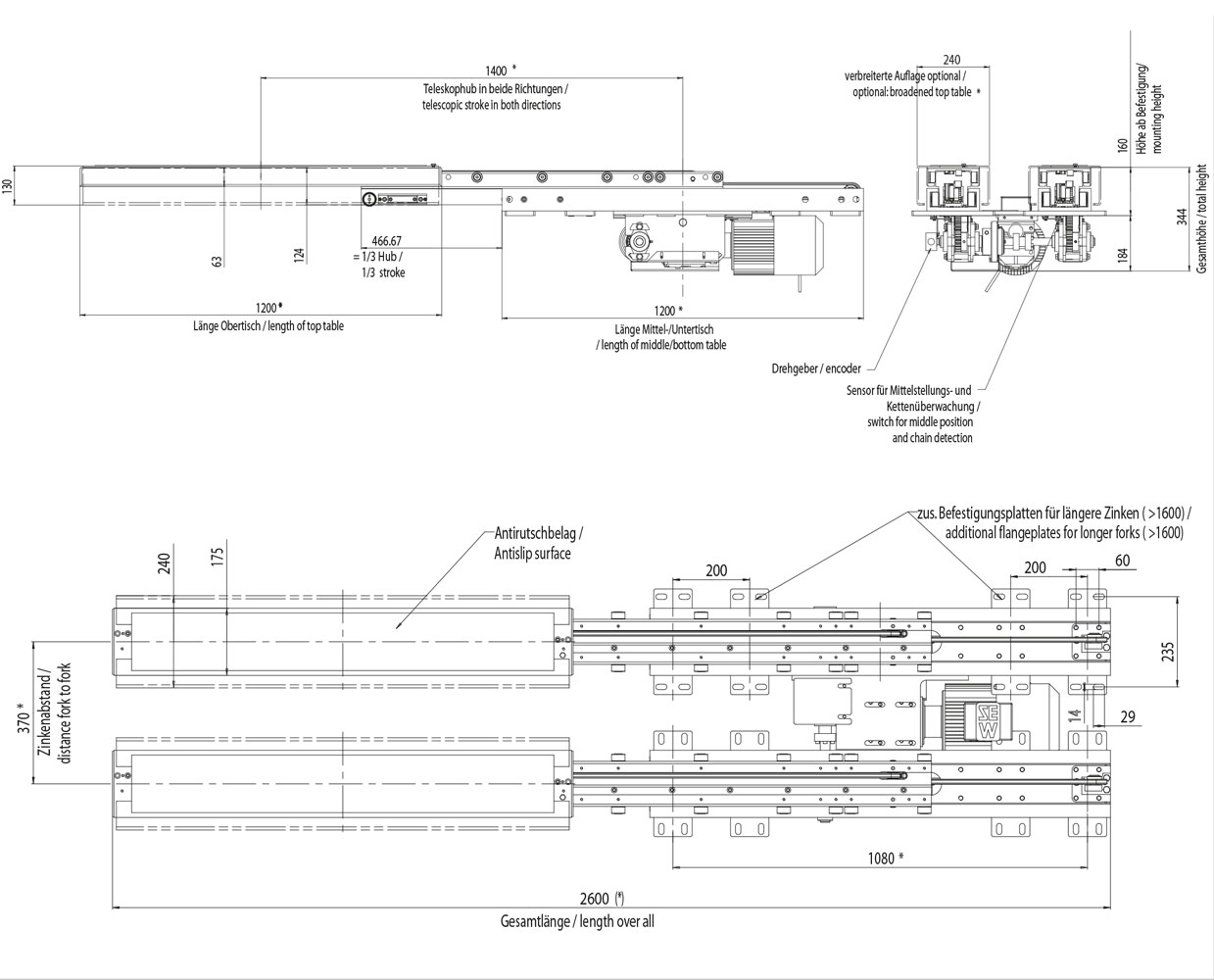

WINKEL telescopic table with reinforced telescopic fork type VTZ are economical designed and built systems for load capacity up to 1.500 kg.

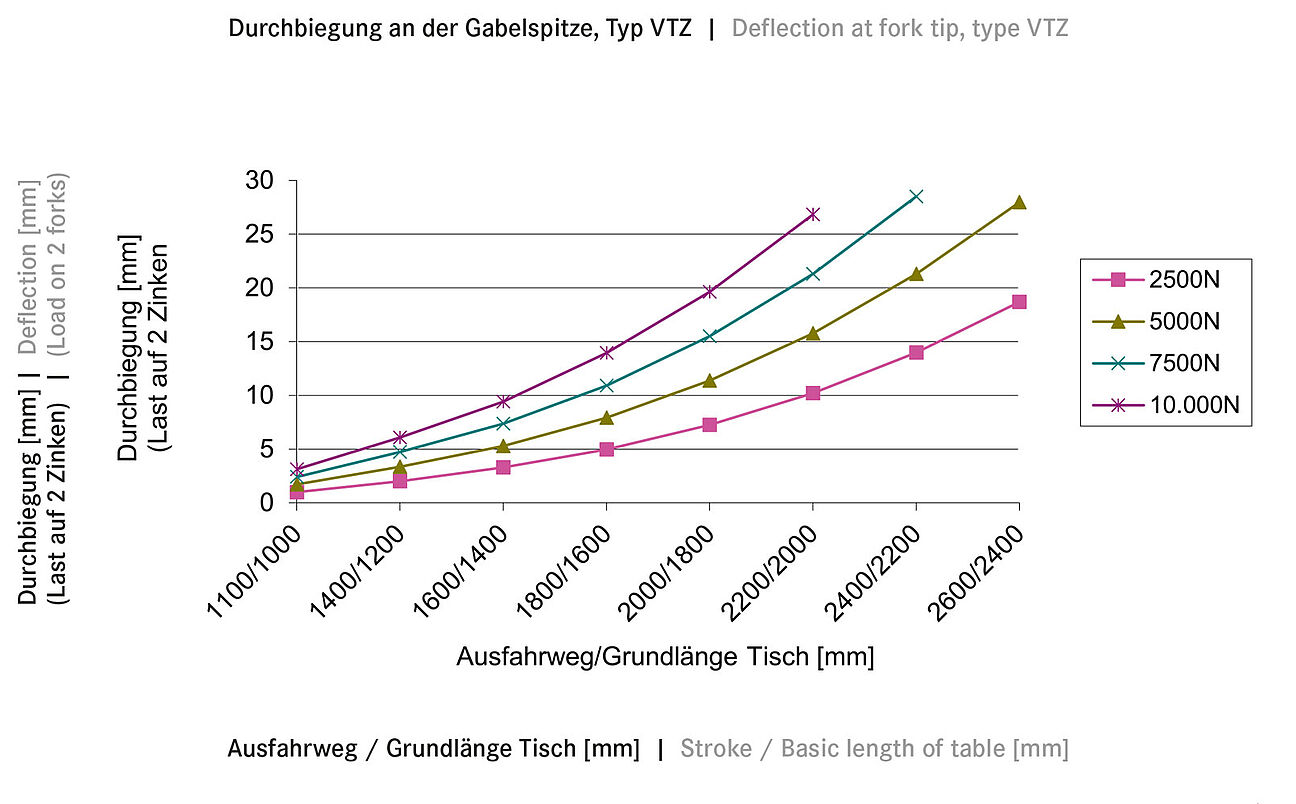

Telescopic forks type VTZ is a reinforced version (V=reinforced) and build with rigid steel profiles with WINKEL precision bearings. Therefore a longer strokes or less deflection at the fork tip, for more details see the diagram further down diagram deflection at fork tip.
Telescopic table are availiable with drive motors in DC or AC version. Drive via rack and pinion and chain. Telescopic forks type VTZ are with eccentric stroke or vertical lifters completly availiable.
| Type | load capacity in kg | fork | stroke in mm | basic length in mm |
| Telescopic table 2 x TZ | 1.000 | TZ | 1.400 | 1.200 |
| Telescopic table VTZ "reinforced" | 1.500 | VTZ | 1.400 | 1.200 |
| Telescopic table TZM modified | max. 1.000 | TZM | 1.400 | 1.200 |
| Telescopic table VTZM modified | max. 2.000 | VTZM | 1.400 | 1.200 |
| Telescopic table DTZR double depth | max. 1.500 | DTZR | 2.600 | 1.200 |
