WINKEL telescopic table with double depth telescopic forks type DTZR
WINKEL telescopic table with double depth telescopic forks type DTZR are economical designed and built systems for load capacities up to 1.500 kg.

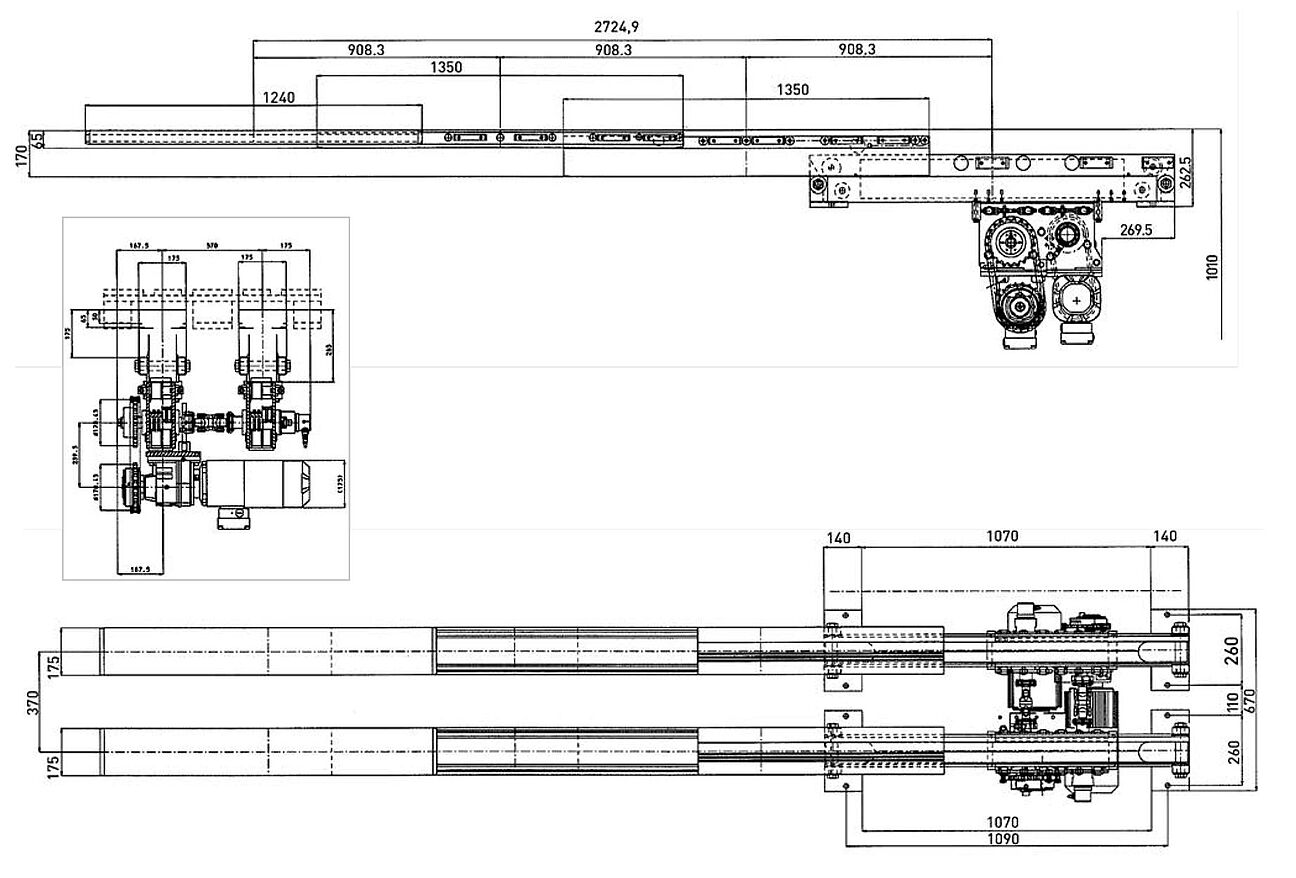

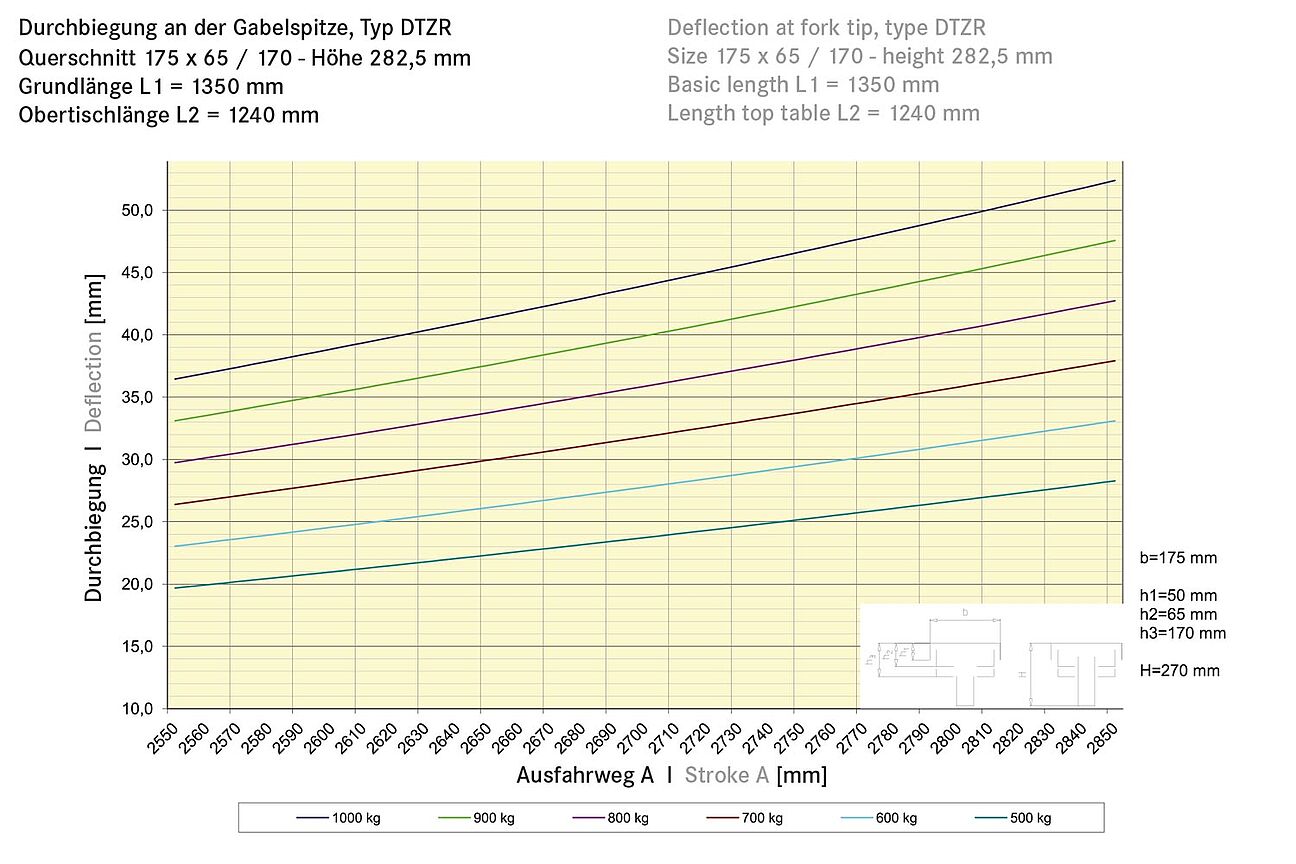

Telescopic forks type DTZR (D=douple depth) are build in rigid steel profiles with WINKEL precision bearings. Therefore less deflection at the fork tip, for more details see the diagram further down diagram deflection at fork tip.
Drive of telescopic forks type DTZR via rack and pinion and chain. Telescopic forks type DTZR are driven with motors availiable in DC or AC version and completely available with eccentric stroke or vertical lifters.
| Type | load capacity in kg | fork | stroke in mm | basic length in mm |
|---|---|---|---|---|
| Telescopic table 2 x TZ | 1.000 | TZ | 1.400 | 1.200 |
| Telescopic table VTZ reinforced | 1.500 | VTZ | 1.400 | 1.200 |
| Telescopic table TZM modified | max. 1.000 | TZM | 1.400 | 1.200 |
| Telescopic table VTZM modified | max. 2.000 | VTZM | 1.400 | 1.200 |
| Telescopic table DTZR "double depth" | max. 1.500 | DTZR | 2.600 | 1.200 |
