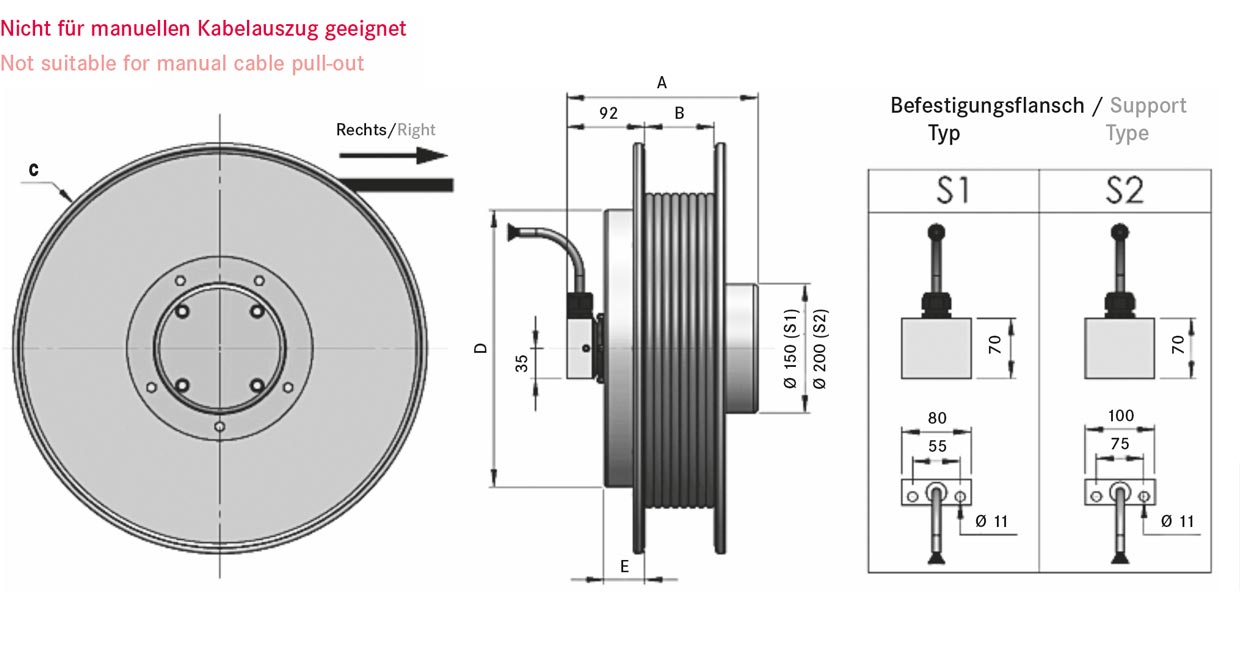

| WER (Trommeltyp rechts) WEL (Trommeltyp links) | Kabel | A | B | C | D | E | Befestigungs flansch | ||
|---|---|---|---|---|---|---|---|---|---|
| Aderanzahl/Querschnitt | Kabel | Nutzbare Länge | |||||||
| [Ø mm] | [m] | [mm] | [mm] | [mm] | [mm] | [mm] | |||
| WER 230.021005 | 2x1,0 mm² | 6,0 | 5,0 | 166 | 72 | 236 | 228 | 45 | S1 |
| WER 230.021010 | 10,0 | 178 | 84 | 236 | 228 | 45 | S1 | ||
| WER 295.021015 | 15,0 | 165 | 70 | 296 | 288 | 46 | S1 | ||
| WER 420.021027 | 27,0 | 178 | 75 | 422 | 272 | 47 | S1 | ||
| WER 420.021032 | 32,0 | 178 | - | 422 | 272 | 47 | S1 | ||
| WER 470.021038 | 38,0 | 178 | - | 478 | 322 | 47 | S1 | ||
| WER 230.031008 | 3x1,0 mm² | 7,3 | 8,0 | 166 | 72 | 236 | 228 | 45 | S1 |
| WER 230.031010 | 10,0 | 178 | 84 | 236 | 228 | 45 | S1 | ||
| WER 340.031015 | 15,0 | 178 | 60 | 340 | 272 | 47 | S1 | ||
| WER 370.031025 | 25,0 | 178 | 67 | 378 | 322 | 47 | S1 | ||
| WER 420.031030 | 30,0 | 178 | 70 | 422 | 322 | 37 | S1 | ||
| WER 470.031038 | 38,0 | 178 | - | 478 | 422 | 47 | S1 | ||
| WER 295.041012 | 4x1,0 mm² | 8,0 | 12,0 | 178 | 70 | 296 | 288 | 47 | S1 |
| WER 420.041028 | 28,0 | 178 | 92 | 420 | 288 | 47 | S1 | ||
| WER 230.061005 | 6x1,0 mm² | 10,0 | 5,0 | 193 | 99 | 236 | 228 | 45 | S1 |
| WER 370.061015 | 15,0 | 192 | 63 | 378 | 272 | 47 | S1 | ||
| WER 370.061018 | 20,0 | 192 | 70 | 378 | 272 | 47 | S1 | ||
| WER 420.061025 | 25,0 | 192 | 80 | 422 | 322 | 47 | S1 | ||
| WER 600.061030 | 30,0 | 192 | - | 620 | 422 | 47 | S1 | ||
| WER 700.061035 | 35,0 | 192 | - | 720 | 532 | 47 | S1 | ||
| WER 230.071006 | 7x1,0 mm² | 10,5 | 6,0 | 193 | 99 | 236 | 228 | 45 | S1 |
| WER 340.071010 | 10,0 | 192 | 70 | 340 | 272 | 47 | S1 | ||
| WER 370.071018 | 18,0 | 192 | 80 | 372 | 272 | 47 | S1 | ||
| WER 370.071021 | 21,0 | 192 | 84 | 378 | 322 | 47 | S1 | ||
| WER 340.081010 | 8x1,0 mm² | 11,0 | 10,0 | 192 | 75 | 340 | 272 | 47 | S1 |
| WER 370.081018 | 18,0 | 192 | 80 | 378 | 272 | 47 | S1 | ||
| WER 370.081020 | 20,0 | 192 | 80 | 378 | 272 | 47 | S1 | ||
| WER 420.081025 | 25,0 | 192 | 80 | 422 | 272 | 47 | S1 | ||
| WER 320.121005 | 12x1,0 mm² | 13,0 | 5,0 | 218 | 92 | 320 | 272 | 47 | S1 |
| WER 370.121010 | 10,0 | 218 | 92 | 378 | 272 | 47 | S1 | ||
| WER 400.121015 | 15,0 | 218 | 92 | 400 | 322 | 47 | S1 | ||
| WER 400.121018 | 18,0 | 218 | 92 | 400 | 322 | 47 | S1 | ||
| WER 400.121020 | 20,0 | 218 | 106 | 400 | 322 | 47 | S1 | ||
| WER 570.121025 | 25,0 | 221 | 80 | 570 | 422 | 47 | S1 | ||
| WER 620.121032 | 32,0 | 221 | 92 | 620 | 532 | 47 | S1 | ||
| WER 370.161010 | 12x1,0 mm² | 15,3 | 10,0 | 248 | 92 | 378 | 322 | 47 | S1 |
| WER 470.161015 | 15,0 | 248 | 92 | 478 | 322 | 47 | S1 | ||
| WER 500.161022 | 22,0 | 248 | 100 | 500 | 422 | 47 | S1 | ||
| WER 700.161030 | 30,0 | 248 | 92 | 720 | 532 | 47 | S1 | ||
| WER 700.161040 | 40,0 | - | - | 720 | - | - | - | ||
| WER 520.181014 | 18x1,0 mm² | 16,0 | 14,0 | 275 | 92 | 520 | 322 | 47 | S1 |
| WER 370.201010 | 20x1,0 mm² | 15,0 | 10,0 | 275 | 92 | 378 | 322 | 47 | S1 |
| WER 570.201020 | 20,0 | 275 | 92 | 570 | 422 | 47 | S1 | ||
| WER 340.251005 | 25x1,0 mm² | 15,5 | 5,0 | 298 | 106 | 340 | 272 | 47 | S1 |
| WER 400.251010 | 10,0 | 298 | 92 | 400 | 322 | 47 | S1 | ||
| WER 520.251015 | 15,0 | 298 | 80 | 520 | 322 | 47 | S1 | ||
| WER 570.251020 | 20,0 | 298 | 92 | 570 | 422 | 47 | S1 | ||
| WER 600.251027 | 27,0 | 298 | 106 | 620 | 422 | 47 | S1 | ||
| WER 520.301015 | 30x1,0 mm² | 17,3 | 15,0 | 310 | 92 | 520 | 422 | 47 | S2 |
| WER 470.321005 | 32x1,0 mm² | 18,8 | 5,0 | 310 | 80 | 478 | 322 | 47 | S2 |
| WER 520.321012 | 12,0 | 310 | 92 | 520 | 322 | 47 | S2 | ||
| WER 600.321020 | 20,0 | 310 | 106 | 620 | 422 | 47 | S2 | ||
| WER 650.321025 | 25,0 | 310 | 106 | 650 | 422 | 47 | S2 | ||
| WER 570.361015 | 36x1,0 mm² | 18,8 | 15,0 | 330 | 106 | 570 | 422 | 47 | S2 |
| WER 650.361025 | 25,0 | 330 | 106 | 650 | 422 | 47 | S2 | ||
Per Standard ist der Schlauchauszug horizontal nach links oder rechts und vertikal nach oben. Optional ist der Schlauchauszug nach unten vertikal auf Kundenwunsch möglich. Bitte teilen Sie uns dies in ihrer Anfrage mit, dass Sie einen vertikalen Schlauchauszug nach unten benötigen.
