Mit den Schlauchtrommelfilter finden Sie sehr einfach und intuitiv Ihre gewünschte Schlauchtrommel, klicken Sie auf "Schlauchtrommelfilter öffnen" und wählen Sie die entsprechenden Filter.

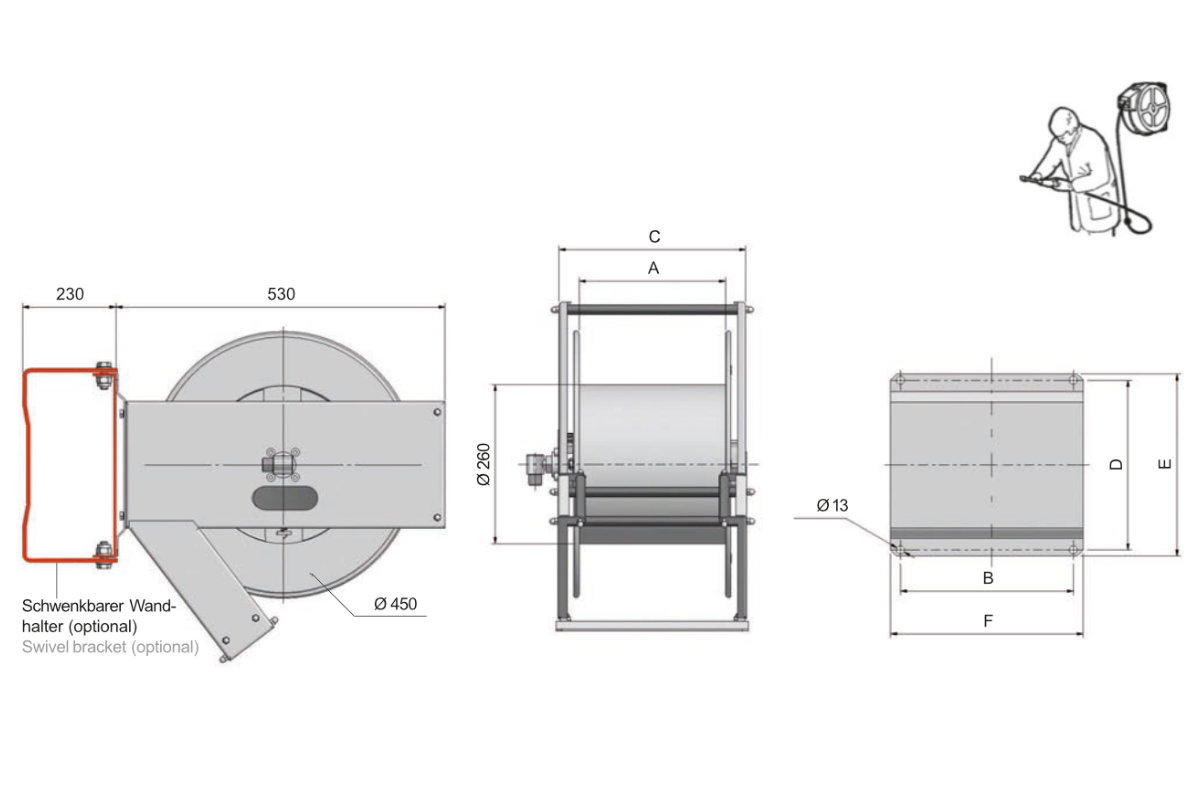

| Trommel Typ | Max. Arbeitsdruck Trommel | Medium | Werkstoff | A | B | C | D | E | F | Schlauchgröße | Gesamtlänge | Wandhalter Typ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [bar] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [Ø] | [m] | ||||
| W 9100.08 | 600 | Luft Öl Diesel | Stahlblech lackiert | 250 | 265 | 300 | 265 | 295 | 310 | 5/16” | 25,0 | W 9084 |
| W 9100.10 | 3/8” | |||||||||||
| W 9100.12 | 1/2” | |||||||||||
| W 9101.08 | 600 | 300 | 415 | 350 | 205 | 235 | 435 | 5/16” | 40,0 | W 9079 | ||
| W 9101.10 | 3/8” | |||||||||||
| W 9101.12 | 1/2” | |||||||||||
| W 9102.19 | 100 | 150 | 265 | 205 | 205 | 235 | 305 | 3/4” | 12,0 | W 9076 | ||
| W 9102.25 | 1” | 8,0 | ||||||||||
| W 9103.19 | 100 | 300 | 415 | 350 | 205 | 235 | 435 | 3/4” | 18,0 | W 9079 | ||
| W 9103.25 | 1” | 15,0 | ||||||||||
| W 9105.19 | 100 | 400 | 470 | 450 | 255 | 285 | 500 | 3/4” | 30,0 | - | ||
| W 9105.25 | 1” | 25,0 | ||||||||||
| W 9107.32 | 20 | 400 | - | 600 | - | 650 | - | 1.1/4” | 20,0 | - | ||
| W 9150.08 | 200 | Wasser max. 150 °C | Edelstahl | 250 | 265 | 300 | 265 | 295 | 310 | 5/16” | 25,0 | W 9085 |
| W 9150.10 | 3/8” | |||||||||||
| W 9150.12 | 1/2” | |||||||||||
| W 9151.08 | 200 | 300 | 415 | 350 | 205 | 235 | 435 | 5/16” | 40,0 | W 9080 | ||
| W 9151.10 | 3/8” | |||||||||||
| W 9151.12 | 1/2” | |||||||||||
| W 9152.19 | 100 | Wasser max. 150 °C | 150 | 265 | 205 | 205 | 235 | 305 | 3/4” | 12,0 | W 9078 | |
| W 9152.25 | 1” | 8,0 | ||||||||||
| W 9153.19 | 100 | 300 | 415 | 350 | 205 | 235 | 435 | 3/4” | 18,0 | W 9080 | ||
| W 9153.25 | 1” | 15,0 | ||||||||||
| W 9155.19 | 100 | 400 | 470 | 450 | 255 | 285 | 500 | 3/4” | 30,0 | - | ||
| W 9155.25 | 1” | 25,0 |
| Schlauchtyp | Schlauchnennweite | Mindest-Biegeradius | Gewicht | Max. Arbeitsdruck | ||
|---|---|---|---|---|---|---|
| Schlauchgröße [Ø] |  [mm] |  [mm] |  [mm] | [kg/m] | [bar] | |
| I21 | 1/4” | 6,35 | 12,1 | 50 | 0,15 | 210 |
| 1SN | 14,1 | 100 | 0,21 | 225 | ||
| B1 | 12,2 | 30 | 0,17 | 310 | ||
| T2 | 12,8 | 40 | 0,25 | 400 | ||
| 2SC | 13,5 | 70 | 0,29 | 400 | ||
| I40 | 13,4 | 70 | 0,28 | 400 | ||
| 462 | 13,4 | 75 | 0,30 | 425 | ||
| Z3 | 14,5 | 40 | 0,26 | 700 | ||
| I21 | 5/16” | 8,10 | 14,1 | 60 | 0,22 | 210 |
| 1SN | 15,7 | 115 | 0,33 | 215 | ||
| B1 | 13,4 | 55 | 0,19 | 250 | ||
| 2SC | 15,0 | 80 | 0,35 | 350 | ||
| T2 | 14,8 | 50 | 0,32 | 400 | ||
| 462 | 15,0 | 85 | 0,35 | 400 | ||
| 1SN | 3/8” | 9,53 | 18,1 | 130 | 0,34 | 180 |
| I21I21 | 15,6 | 65 | 0,26 | 210 | ||
| B1 | 16 | 65 | 0,26 | 225 | ||
| 2SC | 17,9 | 90 | 0,47 | 330 | ||
| 462 | 17,2 | 90 | 0,42 | 350 | ||
| 4SP | 21,4 | 178 | 0,78 | 445 | ||
| 1SN | 1/2” | 12,7 | 21,5 | 180 | 0,45 | 160 |
| B1 | 18,3 | 85 | 0,30 | 190 | ||
| I21 | 19,5 | 90 | 0,41 | 210 | ||
| 2SC | 20,6 | 120 | 0,56 | 275 | ||
| 462 | 20,4 | 130 | 0,52 | 310 | ||
| I40 | 20,6 | 120 | 0,51 | 400 | ||
| 4SP | 24,6 | 230 | 0,93 | 415 | ||
| 1SN | 5/8” | 16 | 24,7 | 200 | 0,51 | 130 |
| 2SC | 24,3 | 130 | 0,67 | 250 | ||
| 4SP | 28,5 | 250 | 1,13 | 360 | ||
| 1SN | 3/4” | 19 | 28,6 | 240 | 0,64 | 105 |
| 2SC | 27,7 | 160 | 0,90 | 215 | ||
| 462 | 27,7 | 196 | 0,86 | 280 | ||
| 4SP | 32,0 | 300 | 1,53 | 350 | ||
| 1SN | 1” | 25 | 36,6 | 300 | 0,97 | 88 |
| 2SC | 35,6 | 200 | 1,28 | 165 | ||
| 462 | 35,4 | 250 | 1,17 | 210 | ||
| 4SH | 38,7 | 340 | 2,09 | 380 | ||
| 1SN | 1.1/4” | 32 | 44,8 | 420 | 1,09 | 63 |
| 2SN | 49,6 | 420 | 1,90 | 125 | ||
| 4SH | 45,5 | 460 | 2,51 | 325 | ||
| 1SN | 1.1/2” | 38 | 52,0 | 500 | 1,33 | 50 |
| 2SN | 56,0 | 500 | 2,30 | 90 | ||
| 4SH | 53,5 | 560 | 3,42 | 290 | ||
