Two port hose cable reel

Two port hose cable reel
Product facts

  • for two hydraulic hoses and one multi-core cable
  • with max. 12 electric cores in the third hose
  • available in Left or Right version
  • fixation by mounting flange
  • self winding by permanent spring force
  • Max. working pressure reel 300 bar (optional 400 bar)
  • Max. flow rate 30 l/min
  • Max. hose speed 30 m/min
  • Temperature range –20 °C/+80 °C (optional –40 °C/+80 °C)
  • Max. voltage: 50 V
  • Max. current: 5 A
  • Option mA an BUS on request
Torna alla pagina precedente

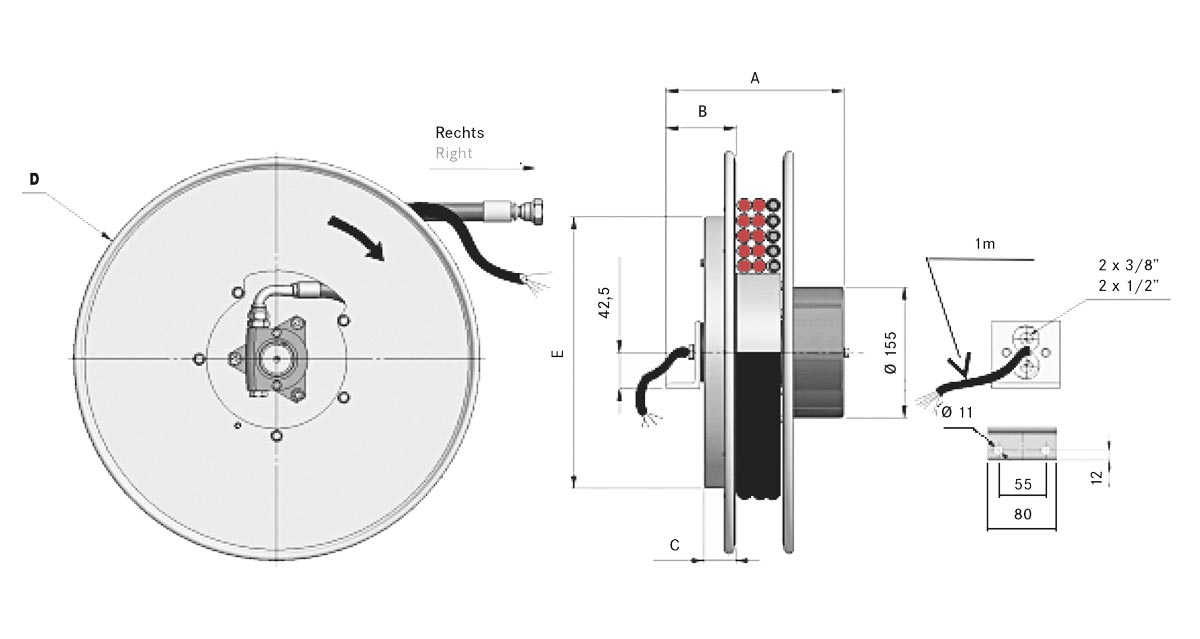

W2R
(reel type right)

W2L
(reel type left)		ABCDEUsable hose length = total hose length [m] - 0.5 m
1/4” R7 (Y=06 - X=R75/16” R7 (Y=08 - X=R7)3/8” R7 (Y=10 - X=R7)3/8” R8 (Y=10 - X=R8)
cabletotal lengthcabletotal lengthcabletotal lengthcabletotal length
[mm][mm][mm][mm][mm][mm²][m][mm²][m][mm²][m][mm²][m]
W2R 230.Y.X/E220575302352282x1,02,22x1,52,02x1,52,02x1,52,0
W2R 230.Y.X/E32173x1,03x1,53x1,5-3x1,5
W2R 230.Y.X/E42254x1,04x1,54x1,54x1,5
W2R 230.Y.X/E52355x1,05x1,55x1,55x1,5
W2R 230.Y.X/E62456x1,06x1,56x1,56x1,5
W2R 230.Y.X/E82458x1,08x1,58x1,58x1,5
W2R 230.Y.X/E1228012x1,012x1,512x1,512x1,5
W2R 270.Y.X/E220575302752722x1,04,02x1,53,22x1,52,82x1,52,8
W2R 270.Y.X/E32173x1,0>3x1,53x1,53x1,5
W2R 270.Y.X/E42254x1,04x1,54x1,54x1,5
W2R 270.Y.X/E52355x1,05x1,55x1,55x1,5
W2R 270.Y.X/E62456x1,06x1,56x1,56x1,5
W2R 270.Y.X/E82458x1,08x1,58x1,58x1,5
W2R 270.Y.X/E1228012x1,012x1,512x1,512x1,5
W2R 295.Y.X/E220575352952912x1,04,72x1,54,22x1,53,62x1,53,6
W2R 295.Y.X/E32173x1,03x1,53x1,53x1,5
W2R 295.Y.X/E42254x1,04x1,54x1,54x1,5
W2R 295.Y.X/E52355x1,05x1,55x1,55x1,5
W2R 295.Y.X/E62456x1,06x1,56x1,56x1,5
W2R 295.Y.X/E82458x1,08x1,58x1,58x1,5
W2R 295.Y.X/E12280-12x1,512x1,512x1,5
W2R 320.Y.X/E220582373252722x1,05,52x1,55,02x1,54,52x1,54,5
W2R 320.Y.X/E32173x1,03x1,53x1,53x1,5
W2R 320.Y.X/E42254x1,04x1,54x1,54x1,5
W2R 320.Y.X/E52355x1,05x1,55x1,55x1,5
W2R 320.Y.X/E62456x1,06x1,56x1,56x1,5
W2R 320.Y.X/E82458x1,08x1,58x1,58x1,5
W2R 320.Y.X/E12280-12x1,512x1,512x1,5
W2R 340.Y.X/E220582373402722x1,06,02x1,55,32x1,54,62x1,54,6
W2R 340.Y.X/E32173x1,03x1,53x1,53x1,5
W2R 340.Y.X/E42254x1,04x1,54x1,54x1,5
W2R 340.Y.X/E52355x1,05x1,55x1,55x1,5
W2R 340.Y.X/E62456x1,06x1,56x1,56x1,5
W2R 340.Y.X/E82458x1,08x1,58x1,58x1,5
W2R 340.Y.X/E12280-12x1,512x1,512x1,5
W2R 370.Y.X/E220582373702722x1,06,02x1,55,32x1,54,62x1,54,6
W2R 370.Y.X/E32173x1,03x1,53x1,53x1,5
W2R 370.Y.X/E42254x1,04x1,54x1,54x1,5
W2R 370.Y.X/E52355x1,05x1,55x1,55x1,5
W2R 370.Y.X/E62456x1,06x1,56x1,56x1,5
W2R 370.Y.X/E82458x1,08x1,58x1,58x1,5
W2R 370.Y.X/E12280-12x1,512x1,512x1,5
W2R 400.Y.X/E220582374003222x1,07,32x1,56,52x1,55,62x1,55,6
W2R 400.Y.X/E32173x1,03x1,53x1,53x1,5
W2R 400.Y.X/E42254x1,04x1,54x1,54x1,5
W2R 400.Y.X/E52355x1,05x1,55x1,55x1,5
W2R 400.Y.X/E62456x1,06x1,56x1,56x1,5
W2R 400.Y.X/E82458x1,08x1,58x1,58x1,5
W2R 400.Y.X/E12280-12x1,512x1,512x1,5
W2R 470.Y.X/E220582374783222x1,011,52x1,510,02x1,59,52x1,59,5
W2R 470.Y.X/E32173x1,03x1,53x1,53x1,5
W2R 470.Y.X/E42254x1,04x1,54x1,54x1,5
W2R 470.Y.X/E52355x1,05x1,55x1,55x1,5
W2R 470.Y.X/E62456x1,06x1,56x1,56x1,5
W2R 470.Y.X/E82458x1,08x1,58x1,58x1,5
W2R 470.Y.X/E12280-12x1,512x1,512x1,5
W2R 520.Y.X/E220582375204222x1,014,52x1,512,52x1,511,22x1,511,2
W2R 520.Y.X/E32173x1,03x1,53x1,53x1,5
W2R 520.Y.X/E42254x1,04x1,54x1,54x1,5
W2R 520.Y.X/E52355x1,05x1,55x1,55x1,5
W2R 520.Y.X/E62456x1,06x1,56x1,56x1,5
W2R 520.Y.X/E82458x1,08x1,58x1,58x1,5
W2R 520.Y.X/E12280-12x1,512x1,512x1,5
W2R 570.Y.X/E220592475704222x1,017,52x1,515,52x1,513,52x1,513,5
W2R 570.Y.X/E32173x1,03x1,53x1,53x1,5
W2R 570.Y.X/E42254x1,04x1,54x1,54x1,5
W2R 570.Y.X/E52355x1,05x1,55x1,55x1,5
W2R 570.Y.X/E62456x1,06x1,56x1,56x1,5
W2R 570.Y.X/E82458x1,08x1,58x1,58x1,5
W2R 570.Y.X/E12280-12x1,512x1,512x1,5
W2R 600.Y.X/E220592476204222x1,021,02x1,517,02x1,516,02x1,516,0
W2R 600.Y.X/E32173x1,03x1,53x1,53x1,5
W2R 600.Y.X/E42254x1,04x1,54x1,54x1,5
W2R 600.Y.X/E52355x1,05x1,55x1,55x1,5
W2R 600.Y.X/E62456x1,06x1,56x1,56x1,5
W2R 600.Y.X/E82458x1,08x1,58x1,58x1,5
W2R 600.Y.X/E12280-12x1,512x1,512x1,5
W2R 650.Y.X/E220592476504222x1,022,52x1,519,52x1,517,52x1,517,5
W2R 650.Y.X/E32173x1,03x1,53x1,53x1,5
W2R 650.Y.X/E42254x1,04x1,54x1,54x1,5
W2R 650.Y.X/E52355x1,05x1,55x1,55x1,5
W2R 650.Y.X/E62456x1,06x1,56x1,56x1,5
W2R 650.Y.X/E82458x1,08x1,58x1,58x1,5
W2R 650.Y.X/E12280-12x1,512x1,512x1,5
W2R 700.Y.X/E2205102577205322x1,027,02x1,522,02x1,520,02x1,520,0
W2R 700.Y.X/E32173x1,03x1,53x1,53x1,5
W2R 700.Y.X/E42254x1,04x1,54x1,54x1,5
W2R 700.Y.X/E52355x1,05x1,55x1,55x1,5
W2R 700.Y.X/E62456x1,06x1,56x1,56x1,5
W2R 700.Y.X/E82458x1,08x1,58x1,58x1,5
W2R 700.Y.X/E12280-12x1,512x1,512x1,5


Hose winding direction & winding directions

Hose winding direction

As standard, the hose pull-out is horizontally to the left or right and vertically upwards. Optional the downward vertical hose extension is possible on customer request. Please let us know in your enquiry that you require a vertical downward hose extension.

Mounting positions

The standard installation position of the hose reel is upright (vertical). Optional a horizontal installation position is possible at the customer's request. Please let us know in your enquiry if required. Not recommended above Ø 470 mm
