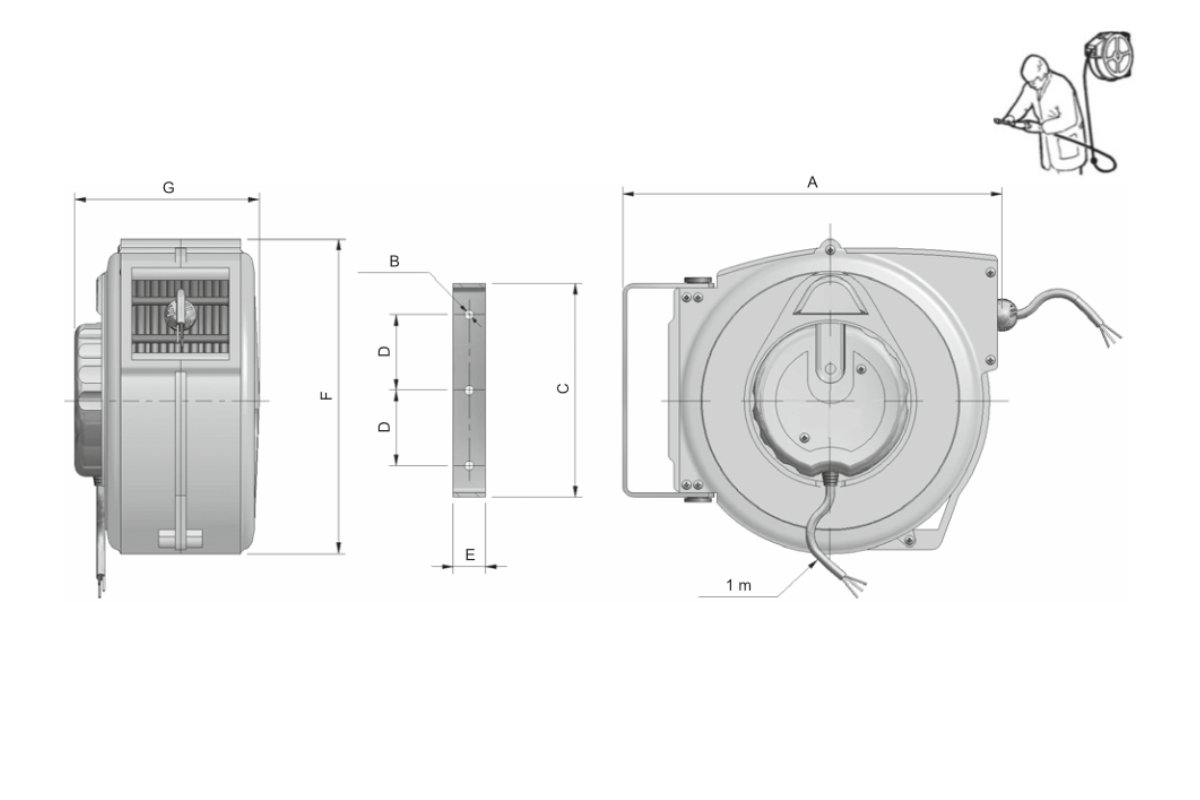

| Trommel Typ | Aderanzahl/Querschnitt | Kabellänge | Spannung | Watt | A | B | C | D | E | F | G | Gewicht | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |  | ||||||||||||
| [mm²] | [m] | [V] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |||
| WE 701 | 1x6,0 mm² | 15,0 | 2.5 KV Max - Earth connection | 320 | 8 | 190 | 70 | 30 | 250 | 160 | 5,0 | ||
| WE 710 | 2x1,0 mm² | 7,0 | 230 | 800 | 2000 | 220 | 8 | 156 | 50 | 30 | 185 | 135 | 4,0 |
| WE 711 | 15,0 | 230 | 800 | 1400 | 320 | 8 | 190 | 70 | 30 | 250 | 150 | 7,0 | |
| WE 712 | 15,0 | 12 | 60 | 60 | 320 | 8 | 190 | 70 | 30 | 250 | 160 | 6,5 | |
| WE 713 | 15,0 | 24 | 60 | 60 | 320 | 8 | 190 | 70 | 30 | 250 | 160 | 6,5 | |
| WE 720 | 3x1,5 mm² | 5,0 | 230 | 800 | 2000 | 220 | 8 | 156 | 50 | 30 | 185 | 135 | 4,0 |
| WE 721 | 10,0 | 800 | 2000 | 320 | 8 | 190 | 70 | 30 | 250 | 160 | 4,5 | ||
| WE 722 | 15,0 | 800 | 2000 | 320 | 8 | 190 | 70 | 30 | 250 | 160 | 5,1 | ||
| WE 723 | 25,0 | 800 | 2000 | 450 | 8 | 190 | 70 | 30 | 361 | 195 | 8,5 | ||
| WE 724 | 35,0 | 800 | 2000 | 530 | 8 | 190 | 70 | 30 | 425 | 210 | 10,0 | ||
| WE 726 | 3x2,5 mm² | 20,0 | 230 | 1600 | 3.500 | 530 | 8 | 190 | 70 | 30 | 425 | 210 | 10,0 |
| WE 740 | 5x1,5 mm² | 20,0 | 400 | 1000 | 3000 | 450 | 15 | 190 | 70 | 30 | 350 | 210 | 9,0 |
| WE 741 | 30,0 | 400 | 1000 | 3000 | 530 | 8 | 190 | 70 | 30 | 425 | 210 | 11,0 | |
| WE 753 | 5x2,5 mm² | 15,0 | 400 | 2800 | 5000 | 450 | 8 | 190 | 70 | 30 | 365 | 210 | 11,0 |
