Fourches télescopiques
Type TZ jusqu'à 1000 kg

Lifter and Telescopic forks

[1:10]
WINKEL lifter and telescopic forks 1:10
The video shown WHP WINKEL beltlifter with Telescopic forks with a load capacity up to 2 x 1.000kg, lifting height of 40 meter and a high dynamic …

Storage and Retrieval machines

[2:51]
WINKEL Puma Regalbediengerät 2:51
The video is shown how the PUMA pallet SR/Storage and Retrieval machine is working for heavy load handling devices.

COLIBRI - pallet handling.

[2:41]
WINKEL COLIBRI Regalbediengerät 2:41
The video shown the COLIBRI pallet handling - without wasting space, while minimizing buffer zones for pallet handling or staging. With COLIBRI …

Lifting and travelling unit

[1:55]
WINKEL Hub- und Verfahreinheit 1:55
The Video shown a lifting and travelling unit with telecopic fork in the food processing.

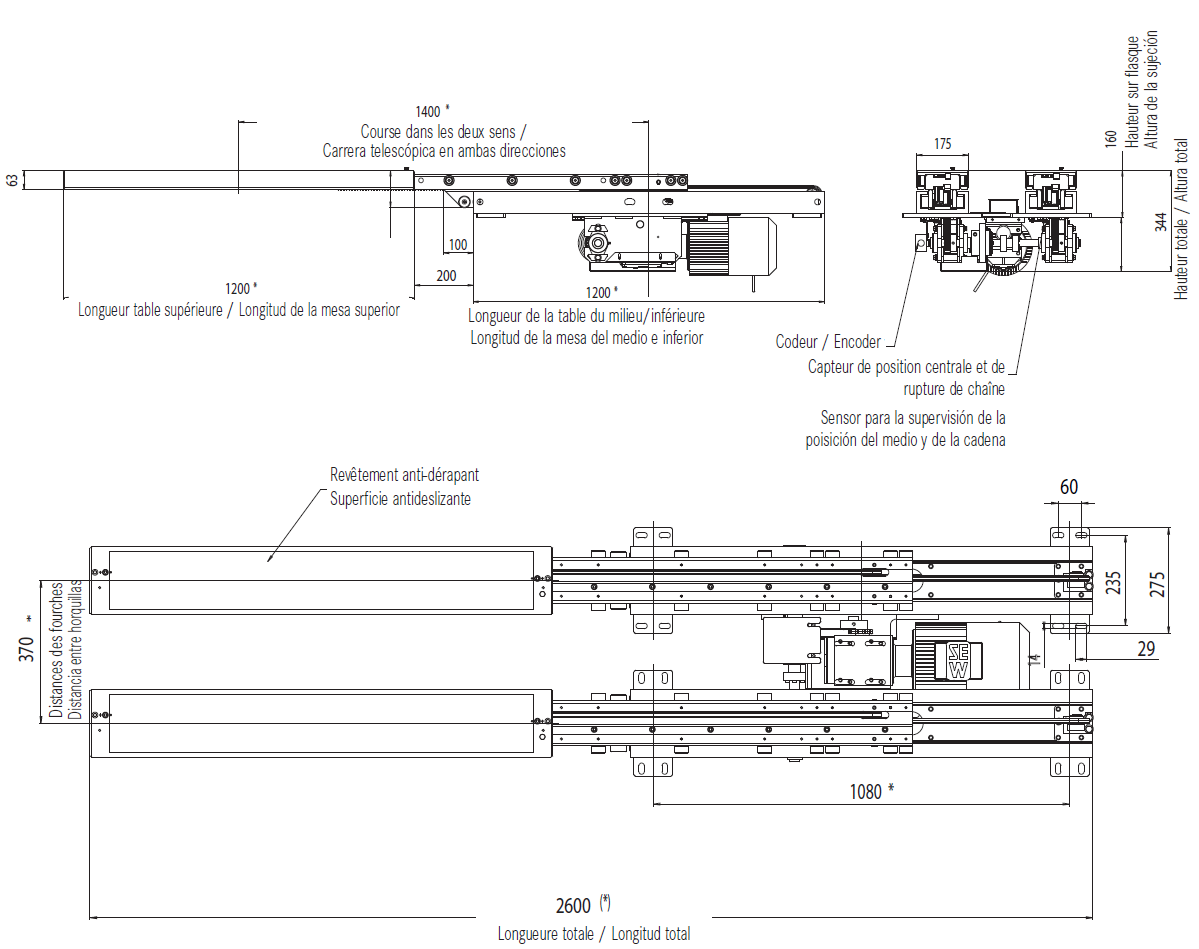

Fourches télescopiques, type TZ jusqu'à 1000 kg

WINKEL Fourches télescopiques, type TZ are economical designed and built systems for load capacities up to 1.000 kg.

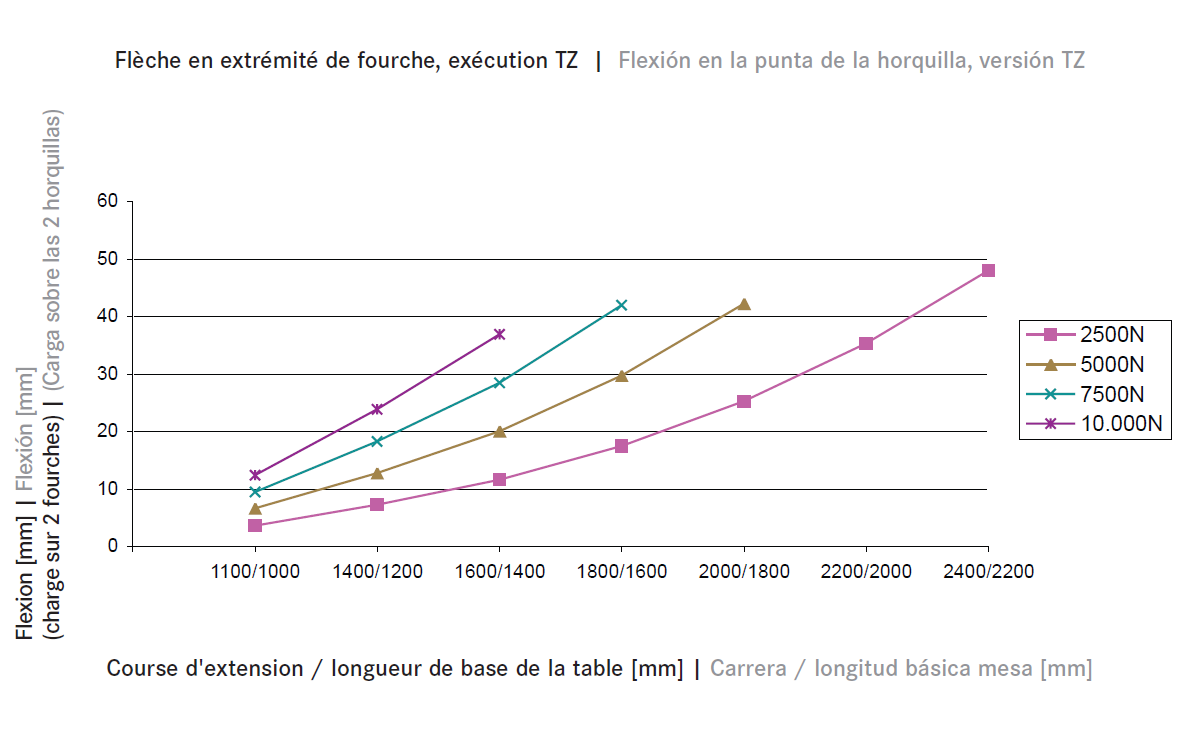

Fourches télescopiques, type TZ are build in rigid steel profiles with WINKEL precision bearings. Therefore less deflection at the fork tip, for more details see the diagram further down diagram deflection at fork tip.

Telescopic forks type TZ are driven with motors availiable in DC or AC version and completely available with eccentric stroke or vertical lifters.

Faits de produits Fourches télescopiques, type TZ

  • Profilés en acier à haute rigidité avec guidage par rouleaux de précision
  • Motorisation au choix en courant continu, courant alternatif ou moteurs hydrauliques
  • Accouplement de sécurité et contacteur de surveillance de rupture de chaîne
  • Entraînement par crémaillère et chaîne
  • Positionnement par codeur absolu ou incrémental
  • Disponible avec levage à excentrique ou dispositif de levage télescopique complet
  • Avec revêtement anti-dérapant
