Four port hose reel serial 4.12

Hose diameter

Hose length

Working pressure

Max. working pressure reel 300 bar (optional 400 bar)

Reel type

Suitable hose reel(s)

Four port hose reel serial 4.12

Order number: #ARTICLE_NUMBER#
#TABLE#



Technical information hose reel

Four port hose reel serial 4.12
Product facts

  • for two thermoplastic welded double hose, with inside diameter 1/2” - 12,7 mm
  • with middle flange between the two double hoses
  • available in Left or Right version
  • fixation by mounting flange
  • self winding by permanent spring force
  • Max. working pressure reel: 300 bar (optional 400 bar)
  • Max. flow rate: 40 l/min
  • Max. hose speed: 30 m/min
  • Temperature range: –20°C/+80°C (optional –40°C/+80°C)

Compression hosesHosesAccessories

назад
Open hose reel filter

With this Hose reel filter you can find your wanted hose reel very easily and intuitively, please click "Open hose reel filter" und select the appropriate filters.

W4R
(reel type right)

W4L

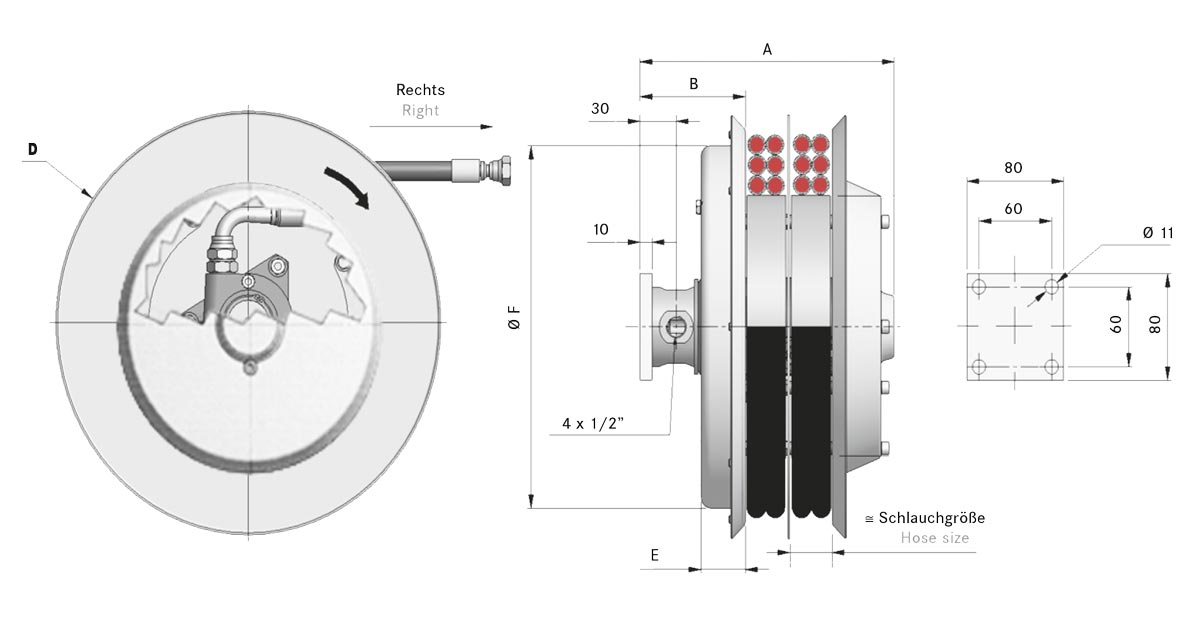

(reel type left)		ABDEFWeight without hoseInside hose sizewith R7 / R8 / B1 hose
total lengthusable length
[mm][mm][mm][mm][mm][kg][Ø][m][m]
W4R 296.12.XX2521292953729121,01/2”1,51,2
W4R 321.12.XX2521293253727223,01/2”2,52,2
W4R 341.12.XX2521293403727225,01/2”2,52,2
W4R 370.12.XX2521293703727230,01/2”3,53,2
W4R 400.12.XX2521294004727233,01/2”4,54,2
W4R 420.12.XX2521294204732235,01/2”4,74,2
W4R 470.12.XX2521294784732238,01/2”7,57,0
W4R 520.12.XX2521295204742245,01/2”9,08,5
W4R 570.12.XX2521295704742250,01/2”10,710,2
W4R 600.12.XX2521296204742263,01/2”12,512,0
W4R 650.12.XX2521296504742275,01/2”14,514,0
W4R 700.12.XX25212972047532-1/2”16,015,5
W4R 800.12.XX2521298205753287,01/2”21,020,0
Nominal diameterMinimum bending radiusWeightHose typeMax. working pressureTemperature
InchSchlauchnennweite Innen
[mm]		Schlauchnennweite aussen
[mm]		Mindest-Biegeradius
[mm]
[kg/m]
[Type]
[bar]
[°C]
3/16”5,009,60250,12R7210–40/+100
9,70300,24B1360–40/+100
1/4”6,3012,20300,20R7210–40/+100
11,70400,33B1310–40/+100
11,50300,34R8350–40/+100
11,90400,341106 KD310–40/+100
12,40700,252006-2 STD465–40/+80
13,50400,53Z2375–40/+100
14,50400,53Z3700–40/+100
5/16”8,1014,40450,25R7190–40/+100
14,30450,26R18210–55/+100
13,40550,37B1250–40/+100
14,40450,25R8300–40/+100
14,00500,421108 KD250–40/+100
14,301000,502008-2 STD440–40/+80
15,10550,64B2350-
14,80500,63T2400–40/+100
3/8”10,0016,00550,29R7160–40/+100
16,60450,33R18210–55/+100
16,00650,53B1225–40/+100
16,00550,29R8280–40/+100
15,90600,511110 KD240–40/+100
16,401200,422010-2- STD420–40/+80
17,00650,84T2330–40/+100
17,00900,80B2350-
16,601200,80B3420-
1/2”12,5018,30850,60B1190–40/+100
22,50700,59R18210–55/+100
20,00750,42R8245–40/+100
19,30750,621112 KD185–40/+100
20,001500,522012-2 STD350–40/+80
20,20850,90T2275–40/+100
20,001301,04B2310–
21,30800,78CPLT5000350–55/+100
20,201501,04B3350-
5/8”16,0025,001601,32B3250-
3/4”19,0028,501501,11HDH250–40/+100

Hose winding direction & winding directions

Hose winding direction

As standard, the hose pull-out is horizontally to the left or right and vertically upwards. Optional the downward vertical hose extension is possible on customer request. Please let us know in your enquiry that you require a vertical downward hose extension.

Mounting positions

The standard installation position of the hose reel is upright (vertical). Optional a horizontal installation position is possible at the customer's request. Please let us know in your enquiry if required. Not recommended above Ø 470 mm
