W4R
(reel type right)
W4L
(reel type left)

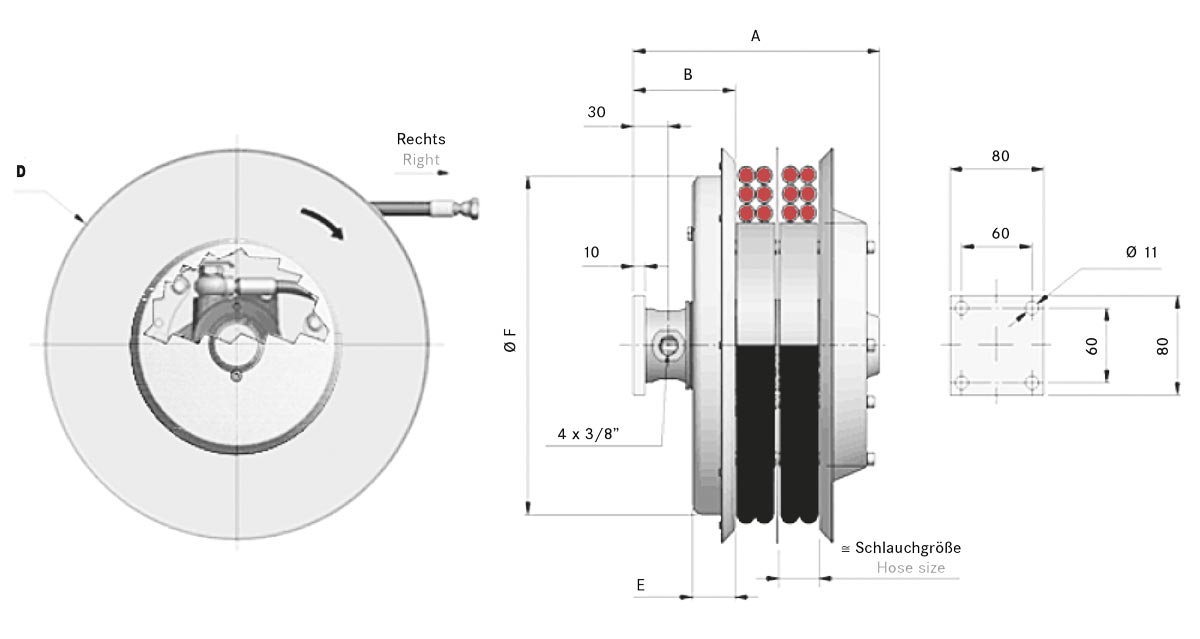

A
B
D
E
F
weight without hose
inside hose size
with R7 / R8 / B1
total length
usable length
[mm]
[mm]
[mm]
[mm]
[mm]
[kg]
[Ø]
[m]
[m]
W4R 230.06.XX
210
90
230
30
226
11,0
1/4”
2,2
1,9
W4R 270.06.XX
210
90
270
30
272
14,0
4,0
3,7
W4R 295.06.XX
210
90
295
37
291
17,0
4,7
4,4
W4R 320.06.XX
210
90
325
37
272
17,0
5,5
5,2
W4R 340.06.XX
210
90
340
37
272
18,0
6,0
5,7
Hose winding direction & winding directions
Hose winding direction
As standard, the hose pull-out is horizontally to the left or right and vertically upwards. Optional the downward vertical hose extension is possible on customer request. Please let us know in your enquiry that you require a vertical downward hose extension.
Mounting positions
The standard installation position of the hose reel is upright (vertical). Optional a horizontal installation position is possible at the customer's request. Please let us know in your enquiry if required. Not recommended above Ø 470 mm
