Three port hose reel serial S3.25

Hose diameter

Hose length

Working pressure

Max. working pressure reel 300 bar (optional 400 bar)

Reel type

Suitable hose reel(s)

Three port hose reel serial S3.25

Order number: #ARTICLE_NUMBER#
#TABLE#



Technical information hose reel

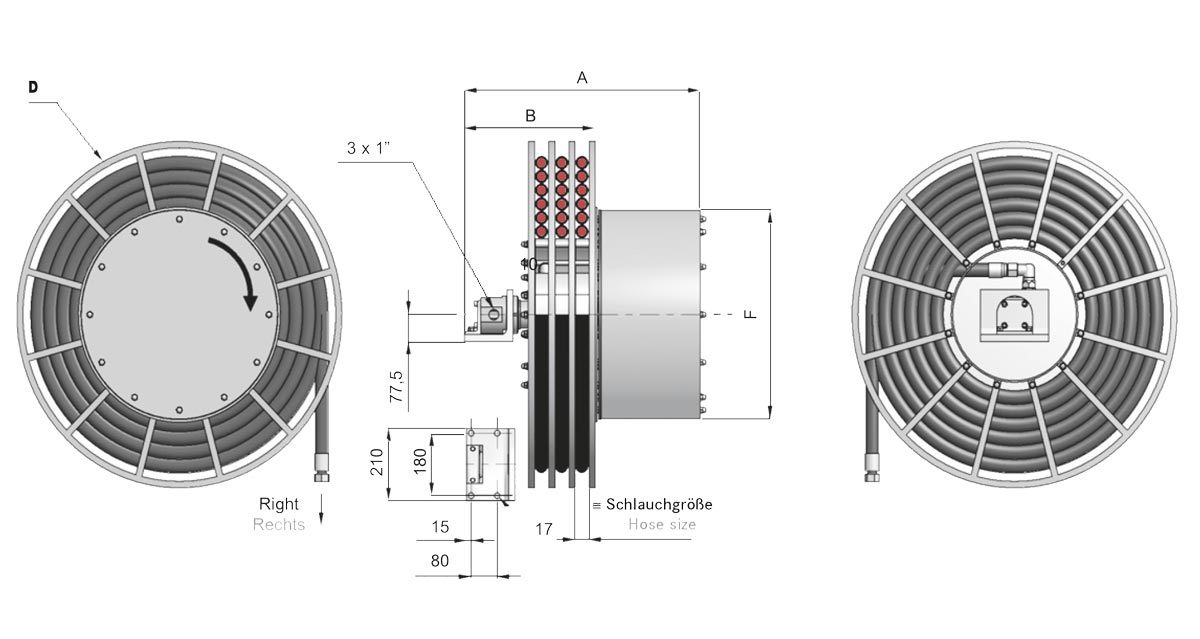

Three port hose reel serial S3.25
Product facts

  • with three single hoses with hose bigger diameter and bigger floating rates
  • with additional third middle flange
  • available in left or right version
  • fixation by mounting flange
  • Max. working pressure reel: 300 bar (optional 400 bar)
  • Max. flow rate: 135 l/min
  • Max. hose speed: 30 m/min
  • Temperature range: –20°C/+80°C
    (optional –40°C/+80°C)
