Cable reel serial WE 500

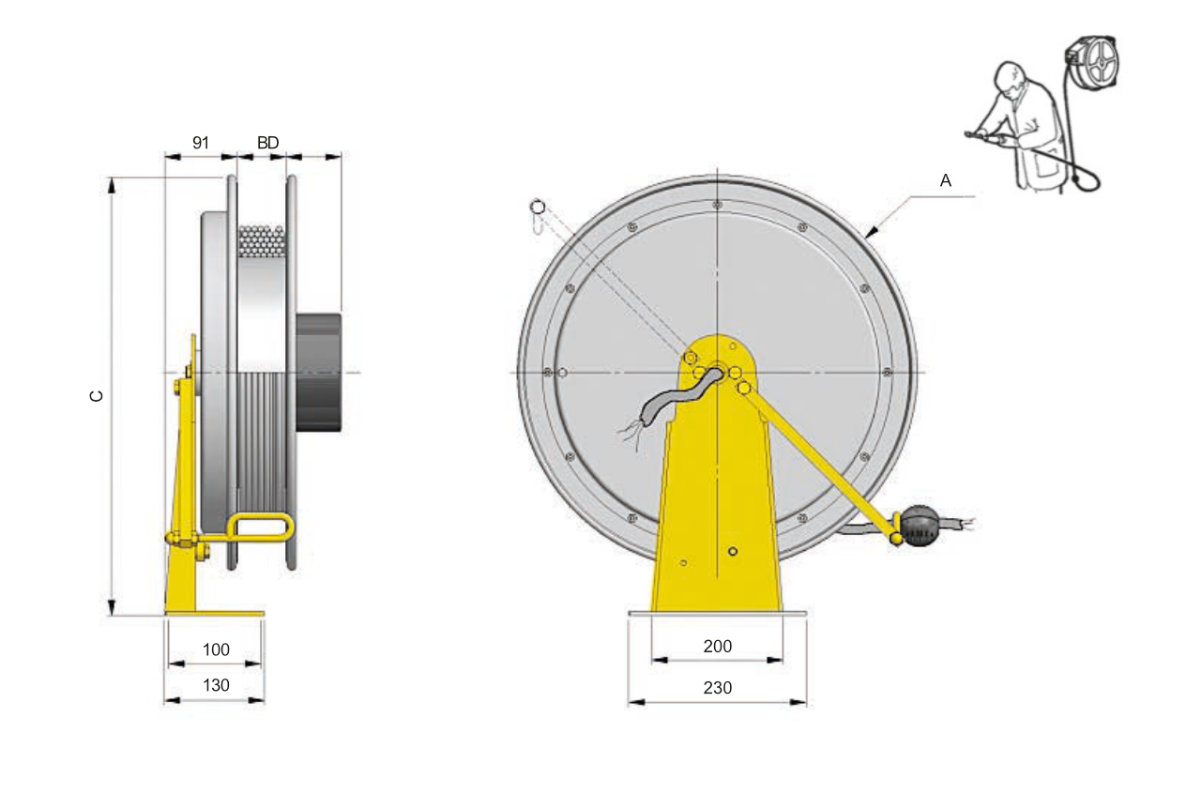

Cable reel serial 500

Cable reel serial WE 500
Product facts

  • cable is pulled out manually, the cable is pulled back automatically via spring drive
  • large wire cross-sections up to 95 mm² possible
  • with manually unlockable spring lock for high safety at the workplace
  • Equipped with mounting flange
  • with cable guide bracket and cable stopper
  • Max. voltage: 230 - 400 V
  • Max. wire speed: 30 m/min
  • Protection category: IP 65
  • Max. working temperature: –20 °C/+ 60 °C
Back
Reel typeCableCurrent voltageSlip ring
Construction		KWABCD
No. of cores/sectioncableCable lengthkw-1-s93kw-2-s93
[mm²][Ø mm][m][V][mm][mm][mm][mm]
WE 5011x10,0 mm²11,015,0on
request		1x50 Aon
request		4788054050
WE 5031x16,0 mm²12,015,01x80 A4788054050
WE 5051x25,0 mm²14,015,01x125 A4788054050
WE 5071x35,0 mm²16,015,01x175 A5209256050
WE 5091x50,0 mm²19,015,01x250 A5209256050
WE 5111x70,0 mm²21,015,01x350 A5209256050
WE 5131x95,0 mm²22,015,01x450 A5209256050
WE 5313x1,5 mm²8,010,02302F+T
30 A		1,23,54785754037
WE 53220,0
WE 53330,0
WE 5373x2,5 mm²10,220,02302F+T
30 AA		1,85,54786754037
WE 53820,0
WE 53930,0
WE 5433x2,5 mm²9,320,04002F+T
30 AA		464785754037
WE 54420,0
WE 54530,035
WE 5494x2,5 mm²10,710,04002F+T
30 A		794788054037
WE 55020,0
WE 55130,068
WE 5554x4,0 mm²15,010,04002F+T
30 A		11154789254037
WE 55620,0
WE 55730,0913520580
WE 5614x6,0 mm²14,510,04002F+T
30 A		17224789254037
WE 56220,0
WE 56330,0520580
WE 5675x1,5 mm²10,010,04003F+T+N
30 A		464786754044
WE 56820,0
WE 56930,035
WE 5735x2,5 mm²13,010,04003F+T+N
30 A		794788054044
WE 57420,0
WE 57530,068520580
WE 5795x4,0 mm²16,210,04003F+T+N
30 A		11154789254044
WE 58020,0
WE 58130,0913520580
WE 58605x6,0 mm²18,510,04003F+T+N
30 A		17224789254044
WE 586220,0
WE 586430,0520580
